• Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 338593

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

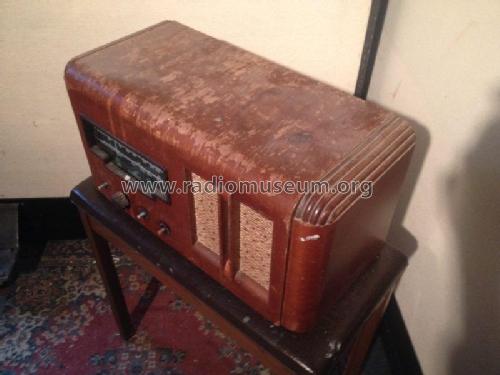

  • Model: Exeter 27 - Columbus Brand; Radio Centre
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 21 x 11 x 9.5 inch / 533 x 279 x 241 mm
  • Price in first year of sale
  • 31.50 £
  • Literature/Schematics (1)
  • -- Original prospect or advert (Northern Advocate 15 April 1948 Page 6)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
