- Country
- Brazil
- Manufacturer / Brand
- COMAR Indústria e Comércio de Artefatos de Rádio Ltda.; São Paulo
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 274070
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: M5-E - COMAR Indústria e Comércio de
- Notes
-
MW = 540 - 1650 kHz
SW1 = 3 - 5 MHz
SW2 = 5 - 8.7 MHz
SW3 = 8.5 - 14.5 MHz
SW4 = 14 - 23.2 MHz
4 sections variable capacitor - 2x 370 + 2x 85 pF
Comar coil pack model M5-E
Phono input
Tone control
Mains voltage depends on power transformer used

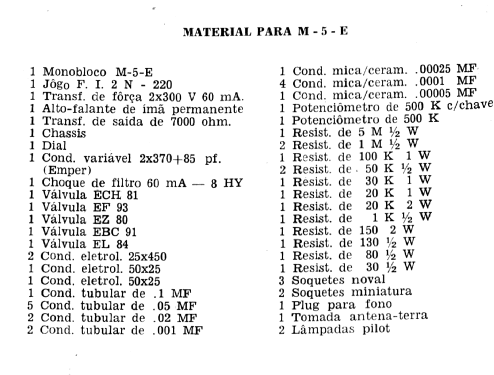

- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Antonio Rabitti. See "Data change" for further contributors.
