• Country
• Brazil

• Manufacturer / Brand
• COMAR Indústria e Comércio de Artefatos de Rádio Ltda.; São Paulo

• Year
• 1952 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 274114

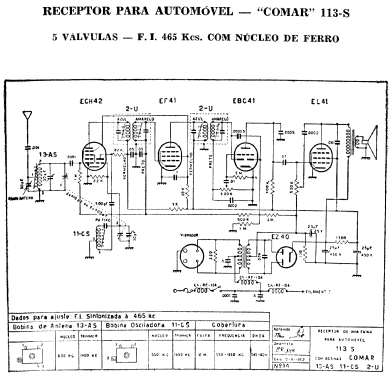

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Rádio para automóvel 113-S - COMAR Indústria e Comércio de

• Notes

•

  MW = 550 - 1650 kHz

  2 sections variable capacitor

  Tone control



• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.

• Other Models

• Here you find 29 models, 29 with images and 28 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from COMAR Indústria e Comércio de Artefatos de Rádio Ltda.; São Paulo
