- Country
- Spain
- Manufacturer / Brand
- Comercial Radio Bertrán; Electrónica Bertrán; ELBE; Barcelona
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 311894
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

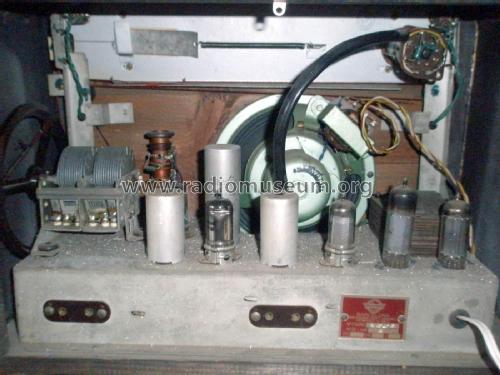

- Model: 16-E - Comercial Radio Bertrán;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 430 x 300 x 230 mm / 16.9 x 11.8 x 9.1 inch
- Net weight (2.2 lb = 1 kg)
- 7.3 kg / 16 lb 1.3 oz (16.079 lb)
- Author
- Model page created by Carlos Saavedra. See "Data change" for further contributors.
