• Country
• Spain

• Manufacturer / Brand
• Comercial Radio Bertrán; Electrónica Bertrán; ELBE; Barcelona

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 289676

• Number of Tubes
• 5

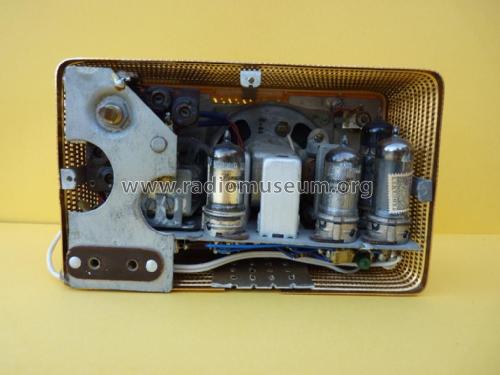

• Valves / Tubes
• UCH41 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Comodin - Comercial Radio Bertrán;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 205 x 125 x 110 mm / 8.1 x 4.9 x 4.3 inch

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Mentioned in
• Radio Historia y Técnica, J.J.E.

• Author
• Model page created by Ildefonso Angel López. See "Data change" for further contributors.
