ELBE 2701 modular
Comercial Radio Bertrán; Electrónica Bertrán; ELBE; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Comercial Radio Bertrán; Electrónica Bertrán; ELBE; Barcelona
- Year
- 1967 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 298062
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- PC900 PCF801 EF183 EF183 EF184 PFL200 PCH200 PCL85 PCF802 PL504 PY88 EF184 EF184 PCL86 unknown_CRT
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: ELBE 2701 modular - Comercial Radio Bertrán;
- Notes
-
TV B/N 27"
Selector rotativo de VHF Roselson RV3-04. Sintonizador de UHF Roselson RU75-T
- Literature/Schematics (1)

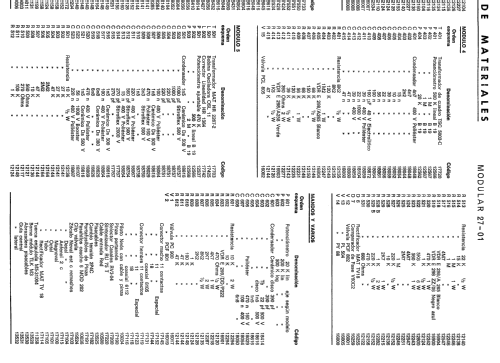

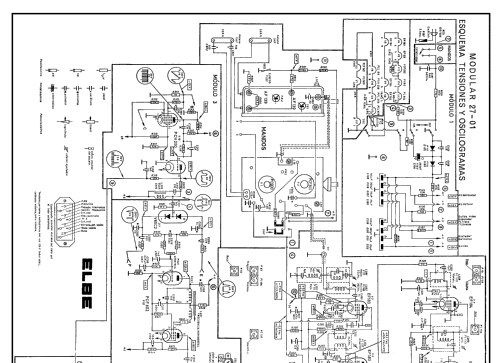

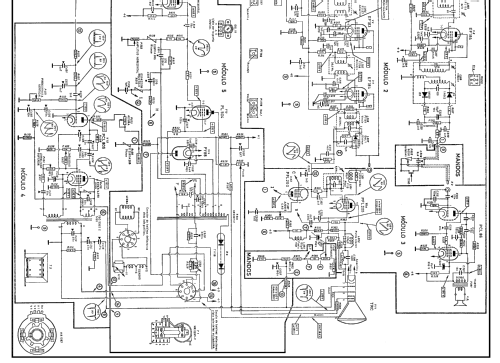

- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
