• Country
• Spain

• Manufacturer / Brand
• Comercial Radio Bertrán; Electrónica Bertrán; ELBE; Barcelona

• Year
• 1995 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 320154

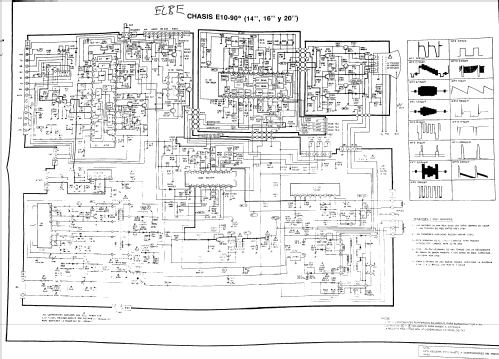

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 370HUB22-TC1

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: ELBE E10-90º [14"] - Comercial Radio Bertrán;

• Notes

• TV Color 14"

  Hay un error en la denominación del TRC en el esquema, 370HVB22 en lugar de 370HUB22



• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
