• Country
• United States of America (USA)

• Manufacturer / Brand
• Commodore International Ltd. (CBM); West Chester, PA

• Year
• 1989 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 330132

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 or 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Monitor 1084-P - Commodore International Ltd.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 355 x 320 x 390 mm / 14 x 12.6 x 15.4 inch

• Notes

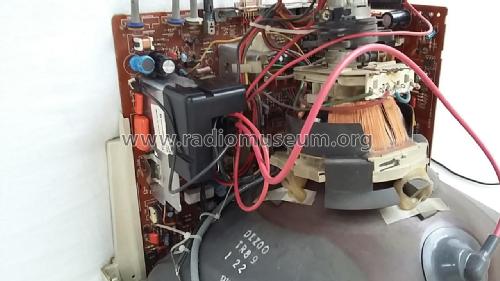

• Monitor 1084-P, picture tube 36cm diagonal, loudspeaker 2W 16 Ohm, line transformer AT2079, replacement HR 7506.

  There are different versions of this model, some equipped with Scart connector, some missing the second RGB DIN connector. Mains is either 220 or 230 V, depening on the variant.

  A stereo version is 1084-S (also made in many variations).

  Made in Taiwan

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Author
• Model page created by Helmut Matysik. See "Data change" for further contributors.
