• Country
• United States of America (USA)

• Manufacturer / Brand
• Commodore Import Corp.; Brooklyn, NY

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 296574

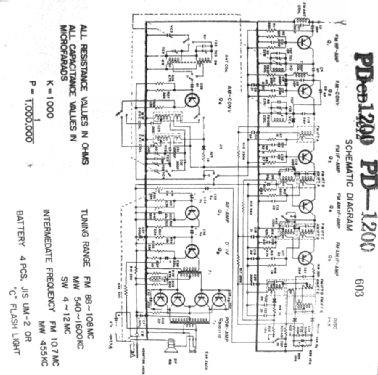

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / UM2: 4 x 1.5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.4 cm = 3.7 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 12Transistor AM/FM/SW Portable Radio PD-1200 - Commodore Import Corp.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 215 x 172 x 58 mm / 8.5 x 6.8 x 2.3 inch

• Notes

• 3-band travel receiver with 55 cm rotating and swiveling telescopic antenna and fixed carrying handle. Tuning and band selection right side, volume / on / off front; 3.5 mm earphone jack and 5.5 mm DC power supply on the left.

  Reception rangr:
  FM: 88 - 108 MHz,
  KW: 4.0 - 12 MHz,
  MW: 540 - 1600 kHz

  Made in Hong Kong

• Net weight (2.2 lb = 1 kg)
• 0.975 kg / 2 lb 2.4 oz (2.148 lb)

• Price in first year of sale
• 94.50 DM

• Author
• Model page created by Holger Struthoff. See "Data change" for further contributors.
