- Country
- United States of America (USA)
- Manufacturer / Brand
- Concord Radio Corp.; Chicago
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 231061
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 1-402 - Concord Radio Corp.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
AC_DC Operated Superheterodyne Receiver with Loop Antenna
AM: 540-1710KC

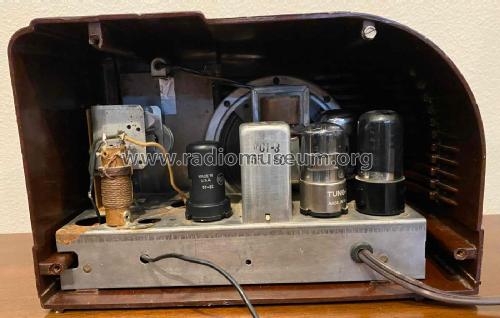

The Concord 1-402 has a brown cabinet.
The Concord 1-403 has an ivory cabinet.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 45, Folder 6, Sept. 1948.)
- Literature/Schematics (2)
- Collector's Guide to Antique Radios (7th Edition)
- Literature/Schematics (3)
- The Radio Collector's Directory and Price Guide 1921 - 1965 (1995 Second Ed., page 152.)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
