- Country
- United States of America (USA)
- Manufacturer / Brand
- Concord Radio Corp.; Chicago
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 133231

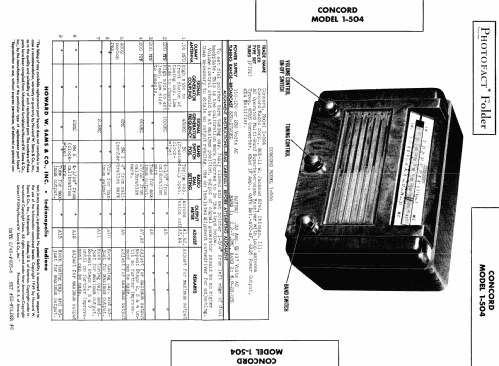

SAMS Photofact reference picture.

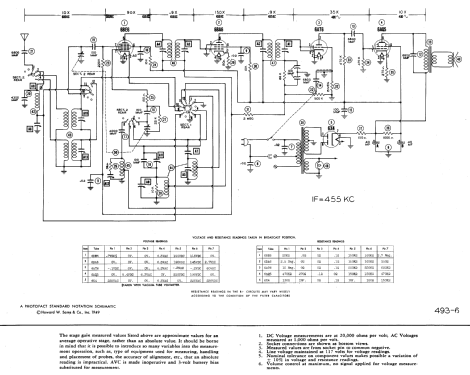

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 or 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.8 inch = 12.2 cm
- from Radiomuseum.org
- Model: 1-504 - Concord Radio Corp.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
- The Concord model 1-504 from Concord Radio Corp., 901-11 W. Jackson Blvd, Chicago, Ill. is an AC operated multi-band superheterodyne receiver with loop antenna.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 2-49, 493-6, set 55, folder 6)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
