Concord 1-1201
Concord Radio Corp.; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Concord Radio Corp.; Chicago
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 133236

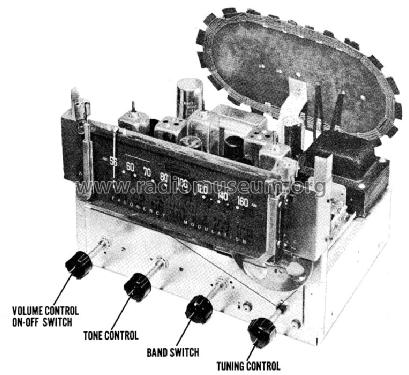

SAMS Photofact as reference picture.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.625 inch = 24.4 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Concord 1-1201 - Concord Radio Corp.; Chicago
- Shape
- Chassis only or for «building in»
- Notes
- The Concord model 1-1201 from Concord Radio Corp., 901-11 W. Jackson Blvd, Chicago, Ill. is an AC operated AM-FM superheterodyne receiver with loop antenna.
- Literature/Schematics (1)

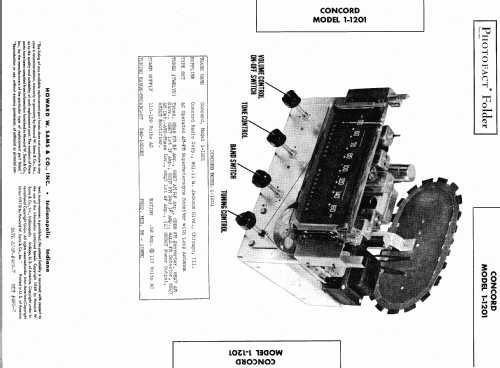

- Photofact Folder, Howard W. SAMS (Date 2-49, 493-7, set 493-7)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
