Concord 2-218
Concord Radio Corp.; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Concord Radio Corp.; Chicago
- Year
- 1948/1949
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 133240

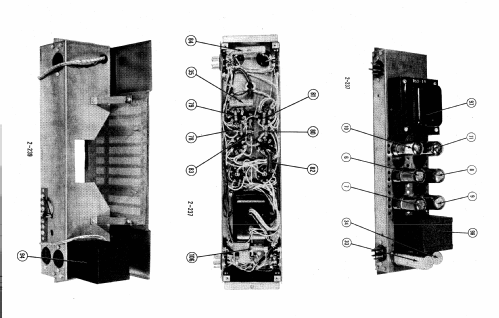

SAMS Photofact picture as reference.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 100-127 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Concord 2-218 - Concord Radio Corp.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Notes
- The Concord models 2-200, 2-201, 2-218, 2-219, 2-232, 2-235, 2-236, 2-237, 2-238, 2-239, 2-240 from Concord Radio Corp., 901-11 W. Jackson Blvd, Chicago 7, Ill. build a family: 2-237 is a 6 tube power amplifier, 2-238 an 8 tube power amplifier, 2-239 an impedance matching chassi and 2-240 a 5 channnel audio pre amp. These are combined the following way to form an AC operated plug-in multi-amp. audio amplifier: 2-200 = 2-240 + 2-237; 2-201 = 2-240 + 2-238; 2-218 = 2-240 + 2 x 2-237; 2-219 = 2-240 + 2-237 + 2-238; 2-232 = 2-240 + 2 x 2-238; 2-235 = 2-237 + 2-239; 2-236 = 2-238 + 2-239.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 5-49, 4910-9, set 62, folder 9)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
