Fonetto 2765 Ch= Philips B4IZ20-02
Condor (Ing. Gallo); Milano
- Country
- Italy
- Manufacturer / Brand
- Condor (Ing. Gallo); Milano
- Year
- 1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177206
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 145; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

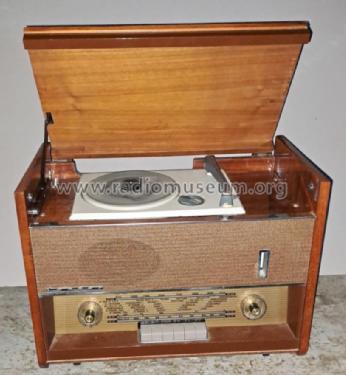

- Model: Fonetto 2765 Ch= Philips B4IZ20-02 - Condor Ing. Gallo; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 485 x 340 x 285 mm / 19.1 x 13.4 x 11.2 inch
- Notes
-
Sintonia a permeabilità variabile.
Commutatore di gamma a tastiera.
Regolatore di tonalità: tasto per bassi, variazione continua per acuti.
Giradischi normale con 4 velocità.
Testina rivelatrice: piezoelettrica reversibile con puntina per 78 giri e per microsolco.
Si tratta del telaio Philips B4 IZ 20-20 con la scala parlante su cui è stato stampato il nome Condor ed il modello 2765.
Ingresso per magnetofono.
- Net weight (2.2 lb = 1 kg)
- 12.7 kg / 27 lb 15.6 oz (27.974 lb)
- Price in first year of sale
- 73,000.00 ITL
- Source of data
- Guida Pratica Antique Radio IV (2001)
- Mentioned in
- Catalogo ANIE (1965-66)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
