• Country
• Italy

• Manufacturer / Brand
• Condor (Ing. Gallo); Milano

• Year
• 1967

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 83682

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 AF117 AC125 AC125 AD149 OA79

• Main principle
• Superhet with RF-stage; ZF/IF 250 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: GC-2777-C - Condor Ing. Gallo; Milano

• Shape
• Chassis only or for «building in»

• Notes

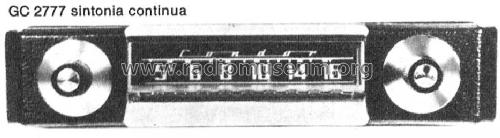

• A sintonia continua. Gamma di frequenza: OM: 520 ÷ 1620 kHz.

• Mentioned in
• Quattroruote - Aprile 1967

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
