• Country
• Italy

• Manufacturer / Brand
• Condor (Ing. Gallo); Milano

• Year
• 1965–1967

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 83746

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• AF102 AF115 AF116 AF116 AF116 AF116 AC125 AC125 AF166 AF170 AF171 AC137 AC138 AD143 AD143 BA102 AA119 AA121 16P2

• Main principle
• Superhet with RF-stage; ZF/IF 250/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

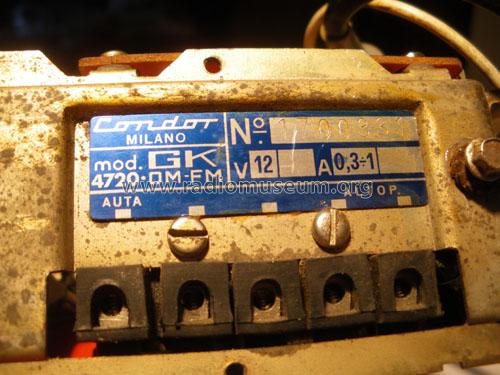

• Model: GK4720 - Condor Ing. Gallo; Milano

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 60 x 210 mm / 7.1 x 2.4 x 8.3 inch

• Notes
• Gamma di frequenza:
  OM: 520 ÷ 1620 kHz.
  FM: 87 ÷ 105 MHz.

  Il modulo tuner FM (Mod. 4625) che si fissa sul retro dell'apparecchio radio,
  ha le dimensioni di mm. 170 x 60 x 40 (L + H + P).

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Quattroruote - Aprile 1967

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
