• Country
• Italy

• Manufacturer / Brand
• Condor (Ing. Gallo); Milano

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 175268

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• SFT320 SFT319 SFT319 SFT353 SFT323 SFT323

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Noblesse Trousse - Condor Ing. Gallo; Milano

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 160 x 98 x 45 mm / 6.3 x 3.9 x 1.8 inch

• Notes

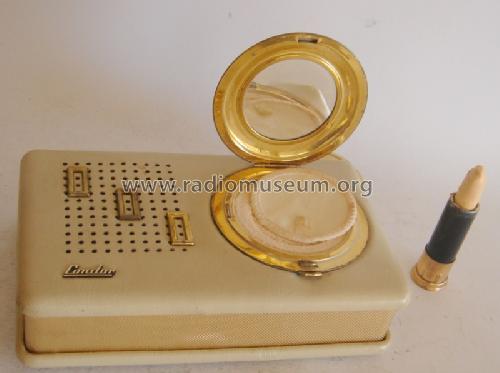

• Ricevitore di piccole dimensioni con rivestimento in similpelle colorata.
  Nel corpo dell'apparecchio sono inseriti un portarossetto ed un portacipria dorati.

• Net weight (2.2 lb = 1 kg)
• 0.560 kg / 1 lb 3.7 oz (1.233 lb)

• Price in first year of sale
• 27,500.00 ITL

• Mentioned in
• Catalogo ANIE 1965-66

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
