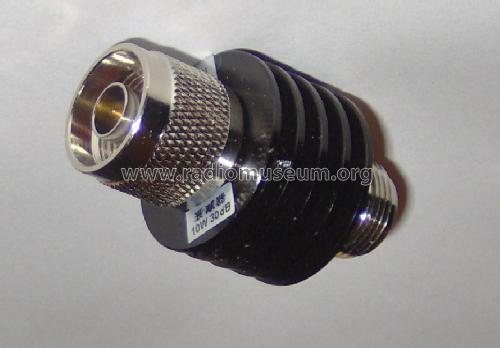

RF Attenuator 10W 30dB
Connekt Precision Electronics Co., Ltd.; Tainan County
- Country
- Taiwan (Republic of China)
- Manufacturer / Brand
- Connekt Precision Electronics Co., Ltd.; Tainan County
- Year
- 1999 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 228336
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: RF Attenuator 10W 30dB - Connekt Precision Electronics
- Dimensions (WHD)
- 50 x 40 x 40 mm / 2 x 1.6 x 1.6 inch
- Notes
-
Radio Frequency 30dB Attenuator; Frequency Range DC - 3 GHz; maximum SWR 1.2:1; maximum Input Average Power 10 Watts; Impedance 50 Ohms; N type Male and Female connectors; suitable for increase to 10 W the admissible input power to any Power Sensor with maximum input power of 10 milliW; available similar models for 3, 6, 10, 15 or 20 dB attenuation too.
- Net weight (2.2 lb = 1 kg)
- 0.1 kg / 0 lb 3.5 oz (0.22 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Emilio Focosi. See "Data change" for further contributors.
