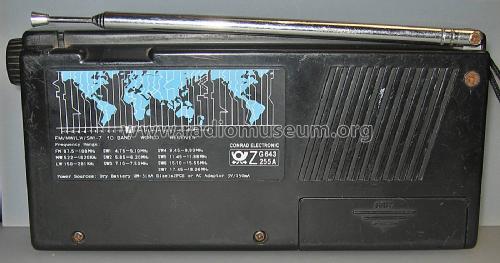

10 Band Conrad-Weltempfänger
Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
- Country
- Germany
- Manufacturer / Brand
- Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
- Year
- 1990 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 332339
-
- Brand: Voltcraft
- Number of Transistors
- Semiconductors present.
- Semiconductors
- CXA1019
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / AA: 2 × 1,5 V / DC: 3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 10 Band Conrad-Weltempfänger - Conrad Electronic Voltcraft,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 165 x 78 x 37 mm / 6.5 x 3.1 x 1.5 inch
- Notes
-
Taschen-Weltempfänger wie Modell DX 200, jedoch mit 7 Kurzwellenbändern und anderer Beschriftung.
- Net weight (2.2 lb = 1 kg)
- 0.290 kg / 0 lb 10.2 oz (0.639 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
