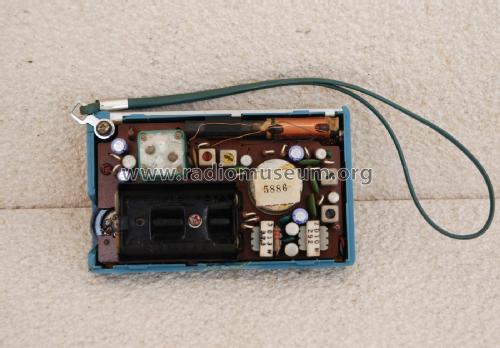

National Panasonic R-1037 Mozambique
CONRAD, Construtora Radio Electrica, Lda. Lourenco Marques, Mozambique
- Country
- Mozambique
- Manufacturer / Brand
- CONRAD, Construtora Radio Electrica, Lda. Lourenco Marques, Mozambique
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 281345
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / AA: 2 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: National Panasonic R-1037 [Mozambique] - CONRAD, Construtora Radio
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 110 x 70 x 35 mm / 4.3 x 2.8 x 1.4 inch
- Notes
-
Made in the old Portuguese colony of Mozambique, under license of Matsushita. See also National Panasonic R-1037 made in Japan
- Net weight (2.2 lb = 1 kg)
- 0.2 kg / 0 lb 7 oz (0.441 lb)
- Author
- Model page created by José Manuel Silvestre. See "Data change" for further contributors.
- Other Models
-
Here you find 4 models, 3 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
