• Country
• Germany

• Manufacturer / Brand
• Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau

• Year
• 1995 ?

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 330725

• • Brand: Voltcraft

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors

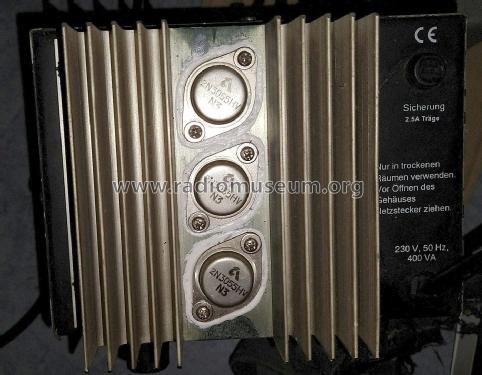

• TIP31 2N3055 2N3055 2N3055 1N5400 1N5400 LM723 KBPC35

• Wave bands
• - without

• Details
• Power Supply (not only Batt.El.)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Regulated DC Power Supply FPS 15A - Conrad Electronic Voltcraft,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 170 x 143 x 260 mm / 6.7 x 5.6 x 10.2 inch

• Notes

• Kurzschlussfestes Netzteil,  Ausgang: 13,8 V 12/15 A

• Net weight (2.2 lb = 1 kg)
• 6.9 kg / 15 lb 3.2 oz (15.198 lb)

• Author
• Model page created by Matthias Buhl. See "Data change" for further contributors.
