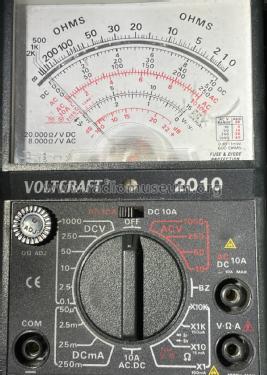

Voltcraft Multimeter analog 2010
Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
- Country
- Germany
- Manufacturer / Brand
- Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
- Year
- 1994–1999 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 321425
-
- Brand: Voltcraft
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 1 x 9 & 2 x 1.5 Volt
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Voltcraft Multimeter analog 2010 - Conrad Electronic Voltcraft,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 100 x 45 x 150 mm / 3.9 x 1.8 x 5.9 inch
- Notes
-
Conrad Voltcraft Multimeter 2010, misst Gleich- und Wechselspannung bis 1000 Volt, Gleich- und Wechselstrom bis 10 A, Widerstand bis ca. 20 MΩ, Diodentest, Durchgangsprüfer (BZ) mit Piezosummer.
Spannungsmessbereiche: Innenwiderstand DC 20 kΩ/V, AC 8 kΩ/V.
- Net weight (2.2 lb = 1 kg)
- 0.375 kg / 0 lb 13.2 oz (0.826 lb)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
