Arborphone old
Consolidated Radio Co.; Ann Arbor, MI
- Country
- United States of America (USA)
- Manufacturer / Brand
- Consolidated Radio Co.; Ann Arbor, MI
- Year
- 1923
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 35776
-
- alternative name: Machine Specialty || Machine Specialty Company || Precision Products
- Brand: Arborphone

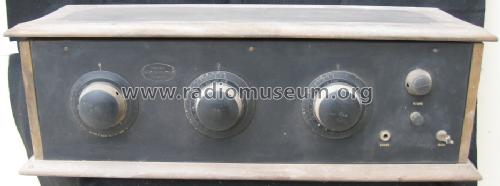

Precision Arborphone front view
Precision Arborphone inside

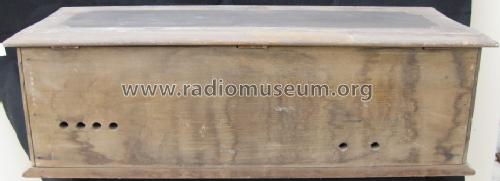

Precision Arborphone rear view
Precision Arborphone label

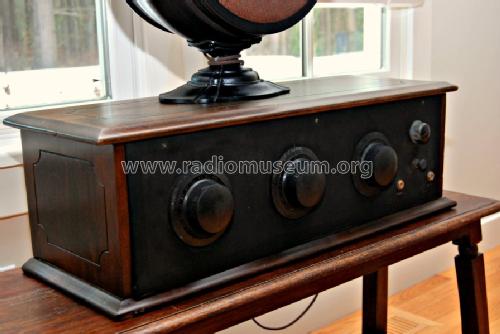

My Arborphone with Radiola 100 Speaker
Ebay Item Number: 330895493540
Ebay Item Number: 330895493540
Ebay Item Number: 330895493540
Ebay Item Number: 330895493540
Ebay Item Number: 330895493540
- Number of Tubes
- 5
- Main principle
- TRF without regeneration
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 6 & 22.5 & 90 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Arborphone [old] - Consolidated Radio Co.; Ann
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 680 x 230 x 250 mm / 26.8 x 9.1 x 9.8 inch
- Notes
-
(Machine Specialty Co., Continental Wireless Supply Corp.) PRECISION PRODUCTS ARBORPHONE. The source of data does name 3 x 01A tubes but these came on the market in 1932 as replacement of the UX201A. The UV201A entered the market in October 1922 and the UX201A in 1925.
- Price in first year of sale
- 90.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Other Models
-
Here you find 17 models, 6 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Consolidated Radio Co.; Ann Arbor, MI
Collections
The model Arborphone is part of the collections of the following members.
Forum contributions about this model: Consolidated Radio: Arborphone
Threads: 1 | Posts: 1
Maße: 680 / 230 / 250 ; Röhren: 5x UX201A; Mittelwelle; 3 Kreise ohne Rückkopplung;
Konrad Birkner † 12.08.2014, 05.Mar.04
