• Country
• United States of America (USA)

• Manufacturer / Brand
• Webcor Electronics / Consolidated Merchandising; Long Island, NY

• Year
• 1971

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 212844

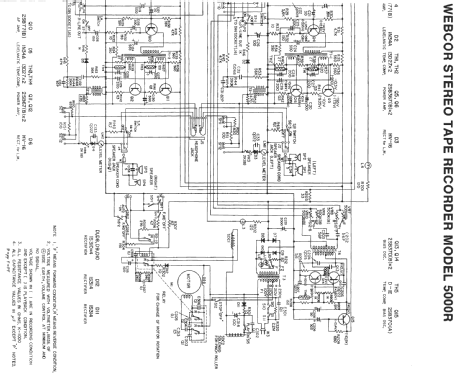

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• 2SB73 2SC281 2SC281 2SB77 2SB367 2SB367 2SB73 2SC281 2SC281 2SB77 2SB77 2SB77 2SB370 2SB370 2SB370

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 100; 120; 210; 230 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo Tape Recorder 5000R - Webcor Electronics /

• Shape
• Tablemodel, with any shape - general.

• Notes
• Webcor 5000R four-track stereo tape recorder with automatic reverse, with a matched pair of speakers (two way) and two microphones with stands. Three speeds 7.5, 3.75 and 1.875 ips.

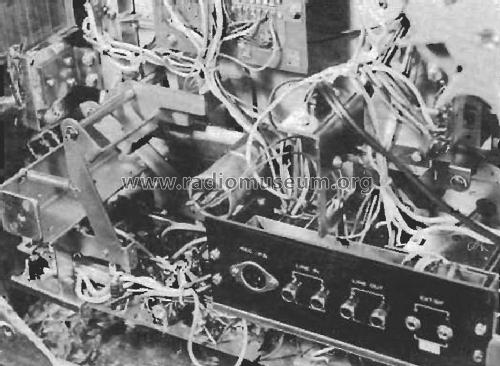

  Separate volume and tone controls for left and right channels. Line in and out (DIN), headphone, microphone connectors. Twin VU meters; speakers can be switched off for operation with external amp.
  12 diodes.

• Price in first year of sale
• 500.00 $

• Mentioned in
• electron, Sept. 1971
