• Country
• United States of America (USA)

• Manufacturer / Brand
• Continental Merchandise Co. Inc. (CMC); New York, NY

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145116

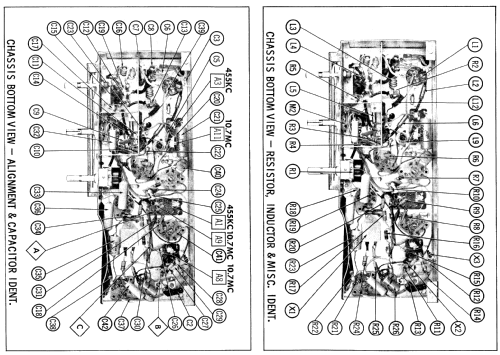

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 17EW8 17EW8 12BE6 12BA6 12BA6 12AV6 35C5

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• from Radiomuseum.org
• Model: FM-771 - Continental Merchandise Co.

• Shape
• Tablemodel, with any shape - general.

• Notes
• The Continental Merchandise Model FM-771 is an AC/DC Operated 7 Tube AM-FM Receiver.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 1-63, Set 613, Folder 8)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
