• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1936 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 35998

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 42 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

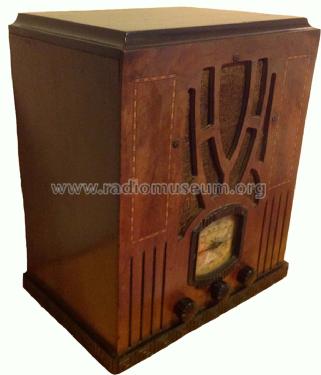

• Model: X-8 - Admiral brand Continental

• External source of data
• Ernst Erb

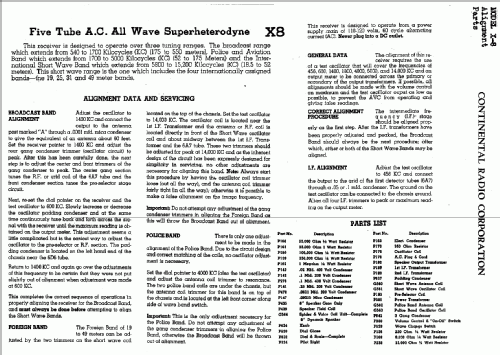

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Other Models

• Here you find 3211 models, 1323 with images and 2578 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Admiral (brand) Continental Radio & Television Co.; Chicago, IL
