• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 9999

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 136867

• • Brand: Coronado

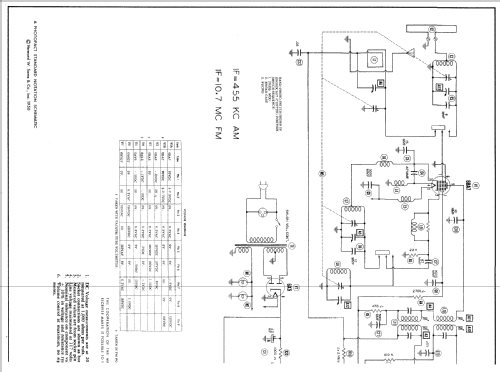

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.25 inch = 18.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Doublet with ID=41427 - Gamble-Skogmo, Inc.;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The Coronado Model 94RA1-43-7751A is a AC Operated Combination Phono-Radio, AM-FM Receiver with Loop Antenna.
  Similar with Gamble-Skogmo Model 94RA1-43-7751A, see Rider's Perpetual, Volume 20.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 3-50, Set 87, Folder 3)
