• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 277686

• • Brand: Coronado

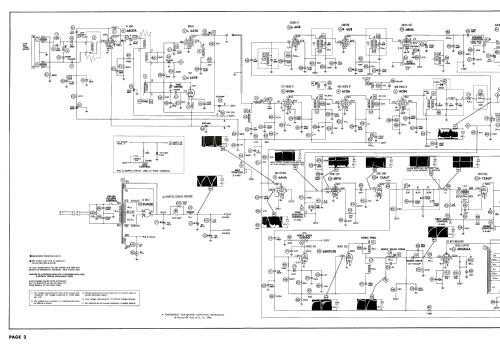

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6BQ7A 6AT8 6CB6 6CB6 6CB6 6U8 12BY7 6U8 6AU6 6BN6 6AQ5 6BY6 12AU7 6W6GT 6SN7GTB 6BQ6GA 6AX4GT 1B3GT 5U4GB 21ATP4

• Main principle
• Superhet with RF-stage; ZF/IF 45750 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Coronado TV2-9338A - Gamble-Skogmo, Inc.;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The CORONADO model TV2-9338A is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner 25A1137 and picture tube 21ATP4.

• Literature/Schematics (1)

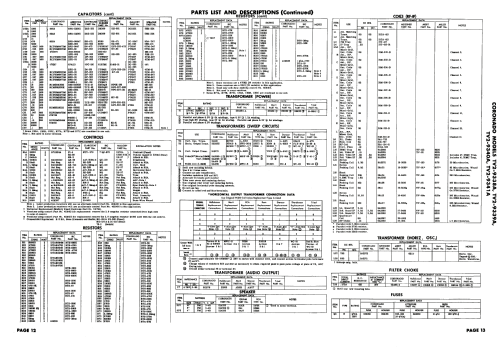

• Photofact Folder, Howard W. SAMS (Set 334 Folder 3 dated 10-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
