• Country
• Spain

• Manufacturer / Brand
• Cosmo S.A., Industrias; Granollers (Barcelona)

• Year
• 1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 201627

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• 2N4286 AC125 or. AC126 AC128 AC128 Metal-rectifier

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm

• from Radiomuseum.org

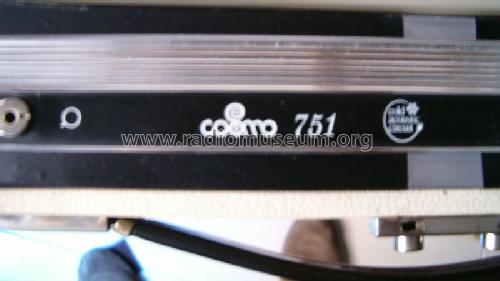

• Model: C-751 [1º] - Cosmo S.A., Industrias;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Industrias Cosmo, S.A., maleta tocadiscos C-751

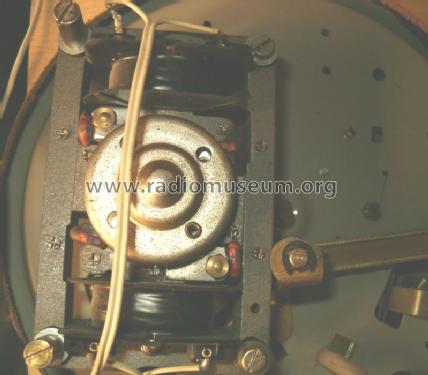

  Lleva plato giradiscos MK23 con cápsula G-62.00 y aguja G-62.30.
  Rectificador B30C250.
  Transformador alimentación tipo Merpoc 103.

  PVP septiembre 1970:
  2.695 + 404 (15% I.L.) + 48 (1,8% I.G.T.E.) = 3.147 Pts

  Véase nota acerca de la nomenclatura usada por Cosmo, S.A.

• Price in first year of sale
• 3,498.00 ESP

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
