E-6538 (CE-6538)

Cosmo S.A., Industrias; Granollers (Barcelona)

Data
Forum
Pictures
Collections

  • Year
  • 1972 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 315878

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 16 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: E-6538 - Cosmo S.A., Industrias;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 495 x 190 x 440 mm / 19.5 x 7.5 x 17.3 inch
  • Notes

  • Industrias Cosmo, S.A. Tocadiscos estereofónico manual E-6538 (CE-6538)

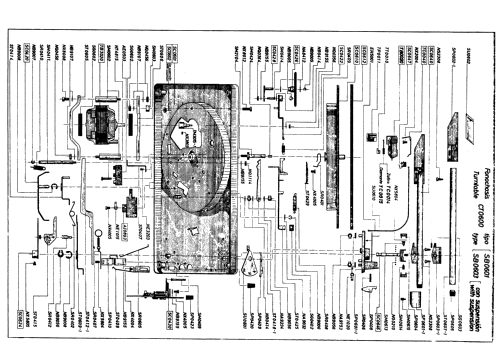

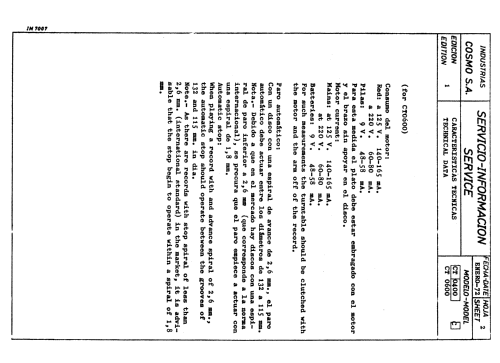

    • Tocadiscos (plato) modelo CT-0600 tipo SB-0603 de 4 velocidades
    • Cápsula cristal tipo TB-0020
    • Aguja de zafiro TC-0014
    • Salidas para altavoces Z= 16 Ω. Bafles opcionales.
    • Caja de madera lacada negra.

    Véase modelo similar con caja de madera barnizada E-6530 (CE-6530)

    Véase nota acerca de la nomenclatura usada por Cosmo S.A.

  • Net weight (2.2 lb = 1 kg)
  • 7.6 kg / 16 lb 11.8 oz (16.74 lb)

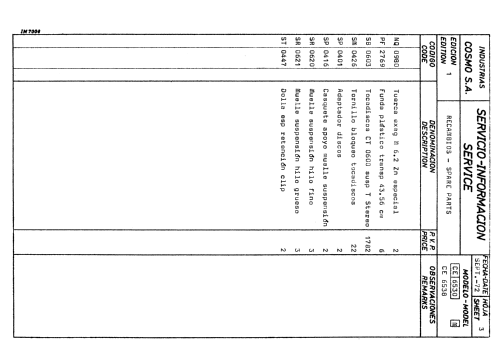

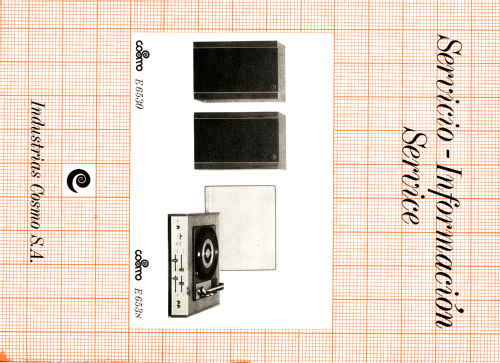

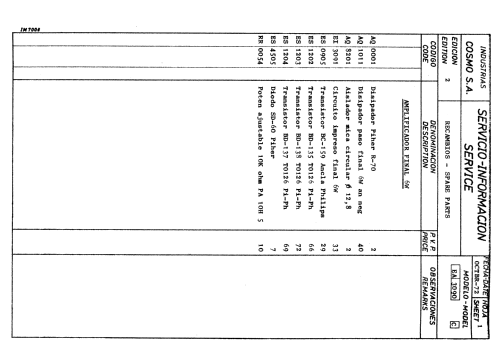

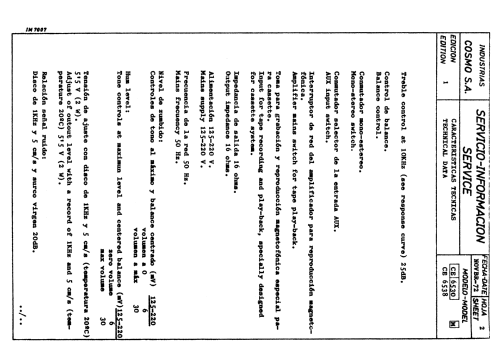

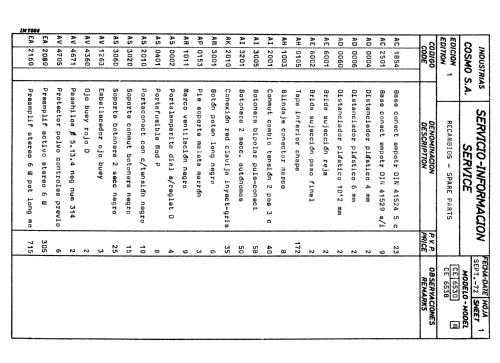

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
