F-6770 (CF-6770)
Cosmo S.A., Industrias; Granollers (Barcelona)
- Country
- Spain
- Manufacturer / Brand
- Cosmo S.A., Industrias; Granollers (Barcelona)
- Year
- 1976 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 315513
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 15
- Semiconductors
- BC149 BC149 BC149 BC159 BD137 BD178 BD177 BC149 BC149 BC149 BC159 BD137 BD178 BD177 AC187 AA119 SD60
- Main principle
- Audio-Amplification
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 12 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: F-6770 - Cosmo S.A., Industrias;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 435 x 205 x 400 mm / 17.1 x 8.1 x 15.7 inch
- Notes
-

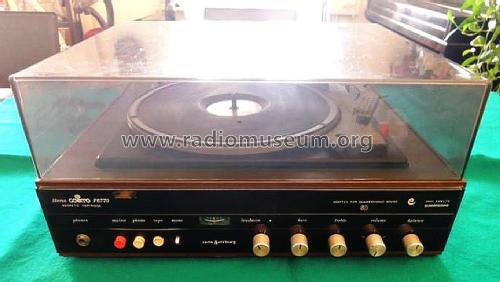

Industrias Cosmo, S.A. Compacto estereofónico automático F-6770 (CF-6770)

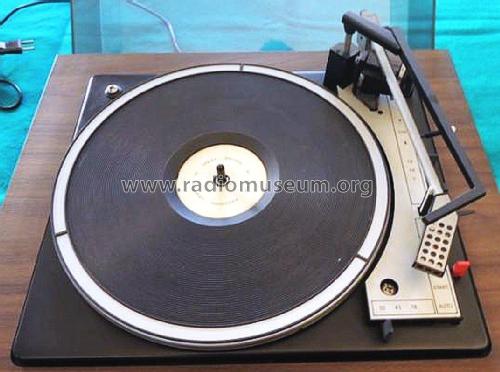

- Tocadiscos (plato) automático BSR 142 para 6 discos.
- Cápsula magnética Shure M75.
- 2 x Bafle con dos altavoces, uno de 5" más tweeter, Z=8 Ω. Peso 3,600 kg. unidad.
Peso especificado corresponde al equipo sin los bafles.
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)

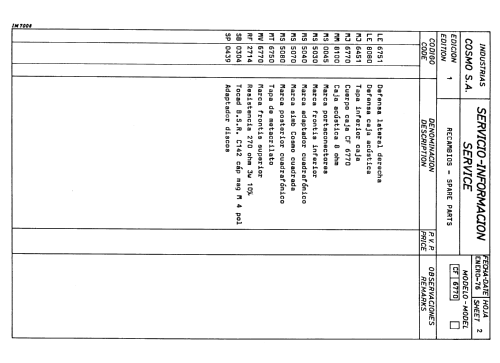

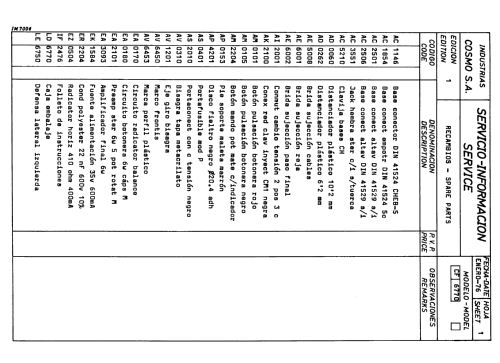

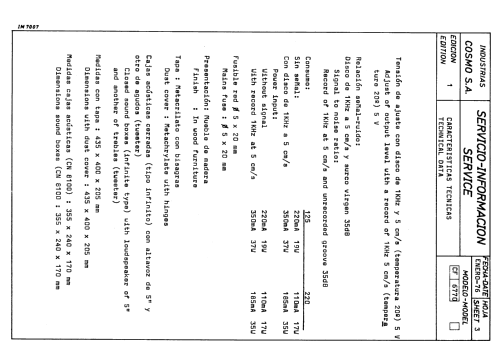

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
