K-8500 (CK-8500)
Cosmo S.A., Industrias; Granollers (Barcelona)
- Country
- Spain
- Manufacturer / Brand
- Cosmo S.A., Industrias; Granollers (Barcelona)
- Year
- 1976
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 315920
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 20
- Semiconductors
- BC149 BC149 BC149 BC149 BC149 BC149 BC149 BC149 BC149 BC149 BC149 BC149 BD135 BD135 AC187 2N4289 2N4289 PC100 SC149 SC149 AA119 B30C250 SD510
- Main principle
- Audio-Amplification
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Power out
- 40 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: K-8500 - Cosmo S.A., Industrias;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 210 x 85 x 285 mm / 8.3 x 3.3 x 11.2 inch
- Notes
-

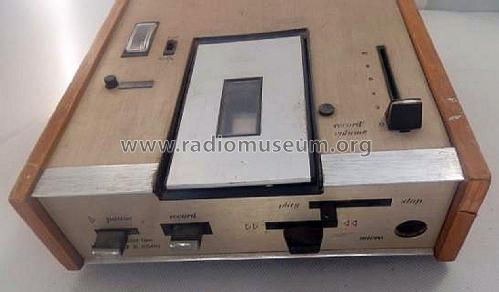

Industrias Cosmo, S.A. Magnetófono Estéreo Cassette Deck K-8500 (CK-8500)
- Selector pra cintas de Hierro o Cromo
- Cuentavueltas
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
