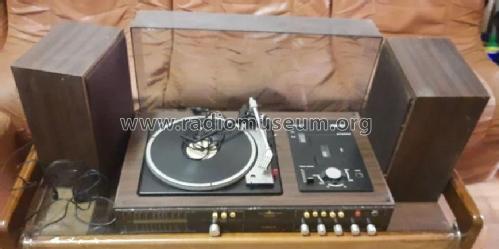

Compact Center Quadrosound F-5010 (CF-5010) Serie Salzburg

Cosmo S.A., Industrias; Granollers (Barcelona)

Data
Forum
Pictures
Collections

  • Year
  • 1976 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 315693

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 38
  • Main principle
  • Superheterodyne (common)
  • Details
  • Record Player + Cassette Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 20 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Compact Center Quadrosound F-5010 Serie Salzburg - Cosmo S.A., Industrias;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 645 x 205 x 390 mm / 25.4 x 8.1 x 15.4 inch
  • Notes

  • Industrias Cosmo, S.A. Music Center F-5010 (CF-5010)

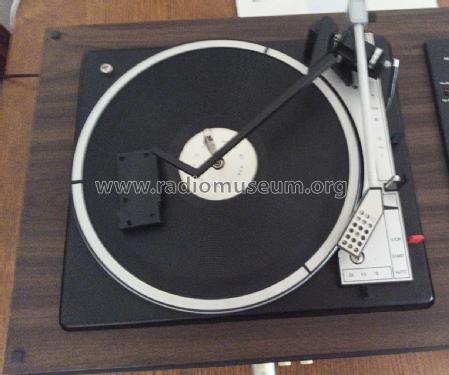

    • Tocadiscos (plato) automático modelo BSR C-142
    • Cápsula de cristal cerámico tipo TB-0504
    • Aguja de zafiro TC-0504
    • Magnetofón estéreo sistema Cassette.
    • 2 x Bafle con altavoz de 5,5" y tweeter elíptico de 3" x 5", Z= 8 Ω,
    • Bafle: medidas 305 x 205 x 155 mm, peso 3,6 kg
    • Salida para adaptador cuadrafónico SQ y altavoces Quadrosound.
    • Salida para auriculares.

    El peso reflejado para el equipo no incluye los bafles.

    Véase nota acerca de la nomenclatura usada por Cosmo S.A.

  • Net weight (2.2 lb = 1 kg)
  • 11.4 kg / 25 lb 1.8 oz (25.11 lb)

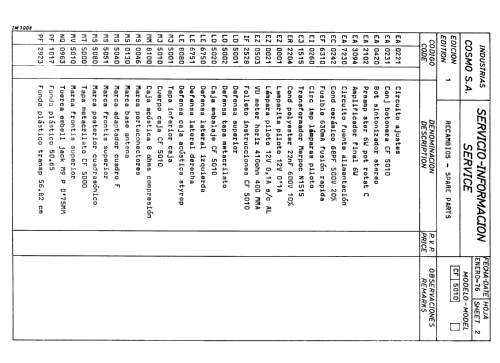

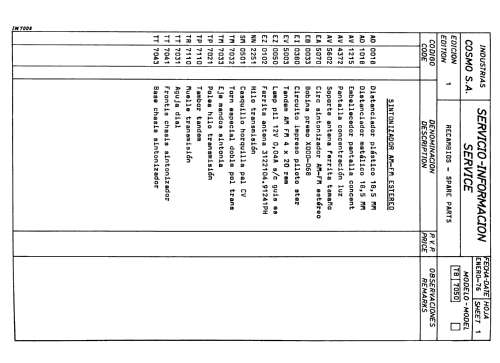

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
