- Country
- Great Britain (UK)
- Manufacturer / Brand
- Cossor, A.C.; London
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 194528
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-215; 216-235; 236-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
- Material
- Wooden case
- from Radiomuseum.org

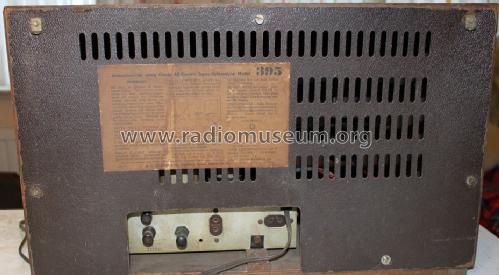

- Model: 395 - Cossor, A.C.; London
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 525 x 320 x 320 mm / 20.7 x 12.6 x 12.6 inch
- Literature/Schematics (1)
- Trader sheet 320
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
