• Country
• Great Britain (UK)

• Manufacturer / Brand
• Cossor, A.C.; London

• Year
• 1946 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140927

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• OM10 OM6 OM4 6V6 6X5

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• from Radiomuseum.org

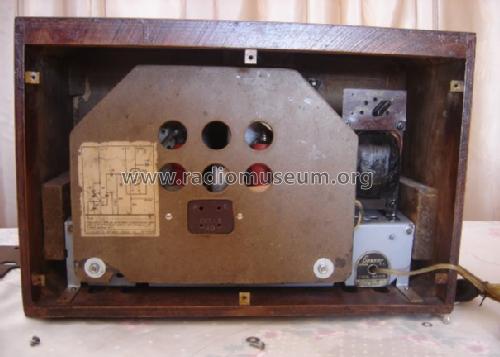

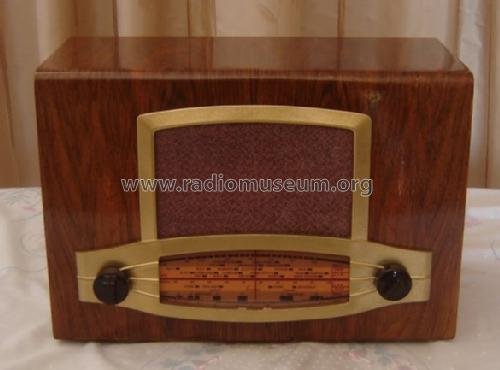

• Model: 463AC - Cossor, A.C.; London

• Notes
• Same circuit as model 464.

• Source of data
• -- Schematic

• Literature/Schematics (1)
• R&TVS. Vol I, 1953 Edition.

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
