470AC
Cossor, A.C.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Cossor, A.C.; London
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79184
thanks
Cossor ad from 1947
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 105-115/120-130/200-215/216-234/235-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 470AC - Cossor, A.C.; London
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 15 x 13.5 x 9 inch / 381 x 343 x 229 mm
- Notes

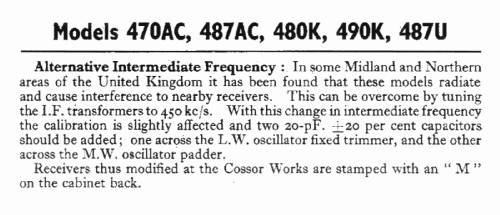

- versions with "M" stamped on the back panel were factory modified to work with 450 kHz IF frequency.
- Net weight (2.2 lb = 1 kg)
- 8.5 kg / 18 lb 11.6 oz (18.722 lb)
- Price in first year of sale
- 21.00 GBP
- Source of data
- Radio! Radio!
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
