• Country
• Great Britain (UK)

• Manufacturer / Brand
• Cossor, A.C.; London

• Year
• 1949

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 156762

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6AM6 6AM6 6AM6 6AM6 6AL5 6AM6 6AM6 6SN7GT 185BT 7Y4 SU61 7C5 6AM6 6AM6 6AL5 7C5 27SU 108K

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 195-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 916 - Cossor, A.C.; London

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 14.25 x 19.5 x 15.25 inch / 362 x 495 x 387 mm

• Notes

•

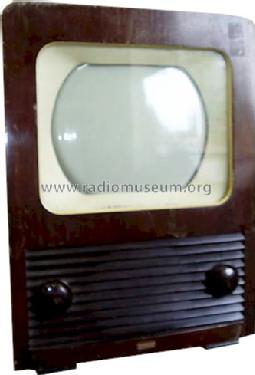

  Table TV set with a 10" round B/W 405 line CRT and a single channel VHF GB band I superhet tuner in a polished wood cabinet.

• Price in first year of sale
• 49.00 GNS

• Source of data
• -- Original prospect or advert

• Mentioned in
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (996/T13)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
