- Country
- Great Britain (UK)
- Manufacturer / Brand
- Cossor, A.C.; London
- Year
- 1951
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 92112
EbayGB kingdomofshadows
EbayGB kingdomofshadows
EbayGB kingdomofshadows
EbayGB kingdomofshadows
EbayGB kingdomofshadows
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6AM6 6AM6 6AM6 6AM6 6AL5 6AM6 6AM6 6AM6 6AL5 6AM6 6SN7GT 6AB8 or 7C5 185BT SU61 7Y4 7C5 27SU 7S7 7B7 7C6 121K
- Main principle
- Superheterodyne (common); ZF/IF 470/16000/19500 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 195-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 924 - Cossor, A.C.; London
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-

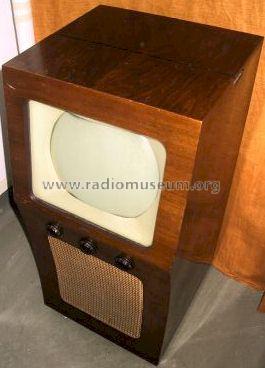

Console TV set with a flip up radio set in the top. 12 inch round 405 line b/w CRT. GB Band I VHF Tuner with 5 channel coverage tuned via three knurled screw core adjusters.
The radio chassis employs valves 7S7, 7B7 and 7C6, and has medium, long and short wave coverage. 7C5 output tube is shared between radio and TV.
Trader service sheet valve listing shows 6AB8 (V15) for frame output, while the Cossor manual has a 7C5 (V12) in its place.
- Literature/Schematics (1)

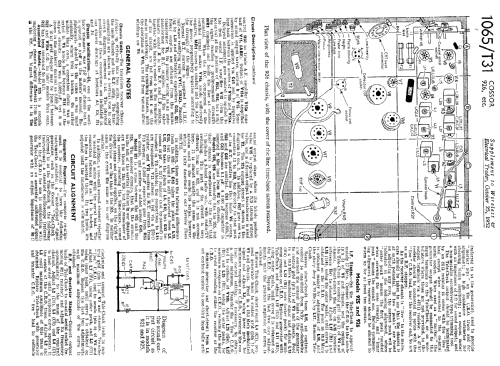

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1065/T31)
- Literature/Schematics (2)
- -- Original-techn. papers.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
