CR1302T
Cossor, A.C.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Cossor, A.C.; London
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 121053

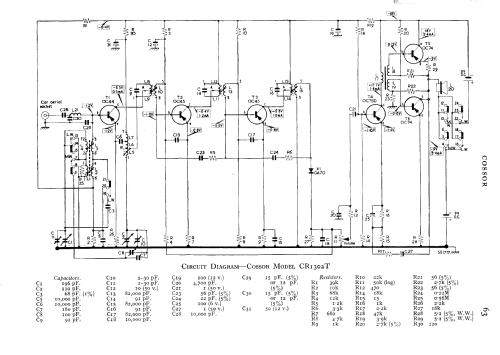

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 2 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: CR1302T - Cossor, A.C.; London
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11.75 x 8.5 x 4 inch / 298 x 216 x 102 mm
- Notes
- See also the later model CR1302T/01 with only one IF amplifier stage.
Socket for external aerial.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
