CR 4212 A
Cossor, A.C.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Cossor, A.C.; London
- Year
- 1963 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 130285

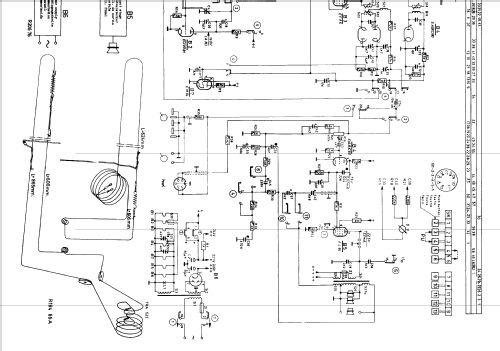

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 12 cm = 4.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: CR 4212 A - Cossor, A.C.; London
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 605 x 248 x 215 mm / 23.8 x 9.8 x 8.5 inch
- Notes
-
The chassis is similar to that in the Philips B4X23A. Cloth covered loudspeaker end panels.
The GB Cossor CR4212A is also similar to the GB Philips PH4212, the NL Philips 4212A/00 /01 (the Cossor CR4212A is mentioned in its Service Manual), the NL Philips 4212A-16, the NL Aristona SA4212A and the CH Mediator MD4212A-16
GB Cossor CR4212A da ist Baugleichen wie beim GB Philips PH4212 und NL Philips 4212A und NL Philips 4212A-16 und NL Aristona SA4212A und CH Mediator MD4212A-16.
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
- Other Models
-
Here you find 326 models, 250 with images and 194 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Cossor, A.C.; London
