Melody Maker 338 Kit

Cossor, A.C.; London

Data
Forum
Pictures
Collections

  • Year
  • 1932–1934
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 326142

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration; 2 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 200; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • from Radiomuseum.org
  • Model: Melody Maker 338 [Kit] - Cossor, A.C.; London
  • Shape
  • Chassis only or for «building in»
  • Notes

  • The Cossor 338 was one of three kit models introduced in 1932. These receivers are of the three valve AC mains type, incorporating variable mu HF stage, followed by a leaky grid detector, and power output. Rectification is by a full wave rectifying valve, and provision can be made for gramophone record reproduction.

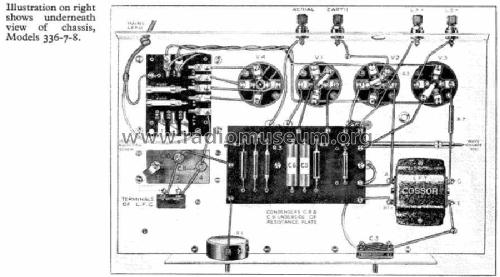

    This Model 338 was supplied as just a chassis and valves, the Model 337 is a tabletop with a built-in loudspeaker housed in a wooden cabinet and the Model 336 a tabletop housed in a wooden cabinet but without a loudspeaker (and no room in its cabinet for one). All three models have the same chassis.

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Cossor Service manual models 336/7/8))
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
