Melody Maker 501 A.C. Loctal valves

Cossor, A.C.; London

Data

Forum

Pictures

Collections

Country
Great Britain (UK)

Manufacturer / Brand
Cossor, A.C.; London

Year
1950

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
74110

Schematics

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 76281) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (3)
Schalplan Cossor 500 ist gleich 501.

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 75660) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (3)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 530103) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (3)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 530105) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (3)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 1001138) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (3)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 1001140) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (3)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 3030603) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (1)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 3030606) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (1)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 3030605) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (1)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 3030604) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (1)

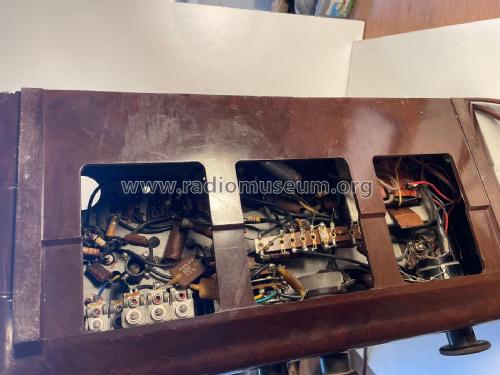

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 3030607) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (1)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 664636) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (2)
Ebay AUS auction 120466604665 / adopted pic.

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 827245) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (1)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 664631) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (2)
Ebay AUS auction 120466604665 / adopted pic.

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 827246) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (1)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 664634) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (2)
Ebay AUS auction 120466604665 / adopted pic.

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 827247) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (1)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 75649) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (1)

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 664633) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (2)
Ebay AUS auction 120466604665 / adopted pic.

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 664635) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (2)
Ebay AUS auction 120466604665 / adopted pic.

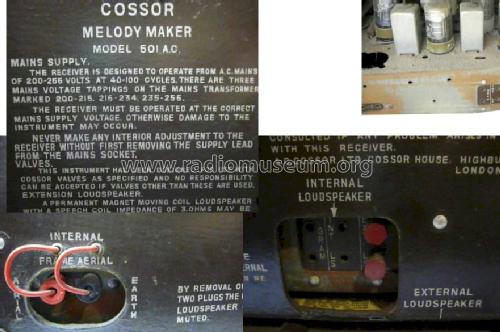

Melody Maker 501 A.C.; Cossor, A.C.; London (ID = 664638) Radio — Cossor, A.C.; London Melody Maker 501 A.C. (2)
Ebay AUS auction 120466604665 / adopted pic.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
7S7 7B7 7C6 7C5 or 6V6GT 7Y4

Main principle
Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast, Long Wave and Short Wave.

Power type and voltage
Alternating Current supply (AC) / 200-215; 216-234; 235-255 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

Power out
2.5 W (unknown quality)

Material
Bakelite case

from Radiomuseum.org
Model: Melody Maker 501 A.C. [Loctal valves] - Cossor, A.C.; London

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
16.5 x 10.75 x 7.75 inch / 419 x 273 x 197 mm

Notes
There are also variants using Rimlock or Octal valves.

Literature/Schematics (1)
-- Original-techn. papers. (Trader Sheet 1133)

Author
Model page created by Karel De Reus †. See "Data change" for further contributors.
