Super-Ferrodyne 369A

Cossor, A.C.; London

Data
Forum
Pictures
Collections

  • Year
  • 1935 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 348843

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration; 1 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • AC/DC-set / 200-250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Super-Ferrodyne 369A - Cossor, A.C.; London
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 20 x 13.5 x 10 inch / 508 x 343 x 254 mm
  • Notes

  • Cossor Super-Ferrodyne Model 369A

    Complete with Cossor Valves as follows: Variable-mu H.F. Screened Pentode, H.F. Pentode Detector and Super-Power Triode Output. Indirectly-heated Rectifier. Fully Screened super-selective Iron-cored coils. Single knob dual-pointer tuning with horizontal full vision scale calibrated in wavelengths and illuminated. Detachable Station Name Plate. Combined "on-off" and wavechange switch. Selectivity control and volume control. 8 in. Energised Moving-Coil Loudspeaker of the latest type. Handsome walnut-finished cabinet, 13½ in. high, 20 in. wide, 10 in. deep with bakelite escutcheon and speaker fret. For D.C. 200/250 volts (adjustable) and A.C. 200 250 volts (adjustable), 50 to 100 cycles.

    See also Super Ferrodyne 369.

  • Price in first year of sale
  • 8.40 GBP
  • Mentioned in

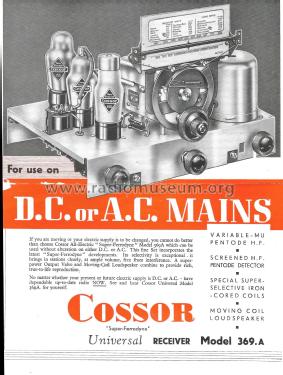

  • - - Manufacturers Literature (Single model leaflet)
  • Author
  • Model page created by Clive Forder. See "Data change" for further contributors.
