CB Transceiver Classic III
Courier, E.C.I., Electronics Communications (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Courier, E.C.I., Electronics Communications (NY)
- Year
- 1976 ?
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 356658
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 25
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / AC: 120 / DC: 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: CB Transceiver Classic III - Courier, E.C.I., Electronics
- Shape
- Chassis only or for «building in»
- Notes
-

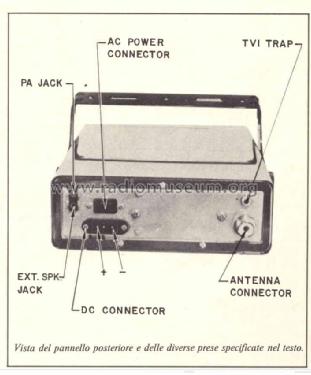

The Courier CB Transceiver Classic III has a 2-way power capability for mobile use with a car battery or as a fixed base with 120VAC.
- Double conversion superheterodyne receiver.
- 23 quartz channels with operation from 26.965 to 27.255 MHz.
- 25 Transistors (one for each type listed) and approximately 13 Diodes and 2 Rectifier Diodes.
Made in Japan
- Mentioned in
- -- Original-techn. papers. (“Sperimentare” Italy, J.C.E editor, numbers 7/8 July/August 1976)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
