- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Courtenay (Brand); Various manufacturers
- Year
- 1934 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 340820

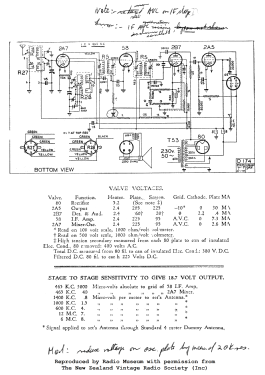

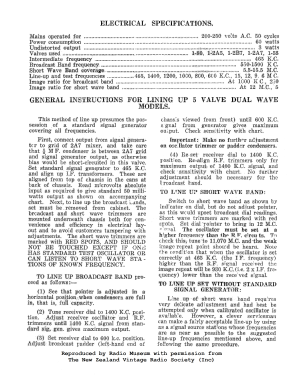

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 3 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 109 - Courtenay Brand; Various
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-
5-Valve superhet dual wave table model receiver.
Manufactured for Turnbull and Jones by Radio Corporation of New Zealand Ltd.
See also Stella Model 5D, Pacific Model 109 & Courtenay Model 108 (6 valve version).
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
- Other Models
-
Here you find 67 models, 52 with images and 60 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Courtenay (Brand); Various manufacturers
