- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Courtenay (Brand); Various manufacturers
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 357469
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 50Hz, 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 36 [AC] - Courtenay Brand; Various
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 600 x 308 x 275 mm / 23.6 x 12.1 x 10.8 inch
- Notes
-

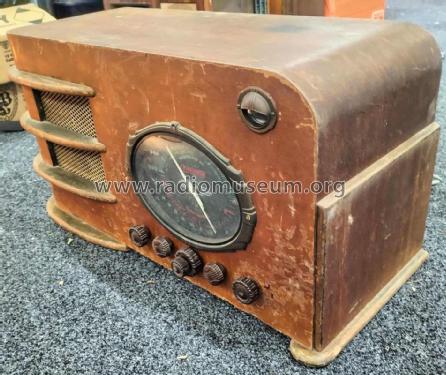

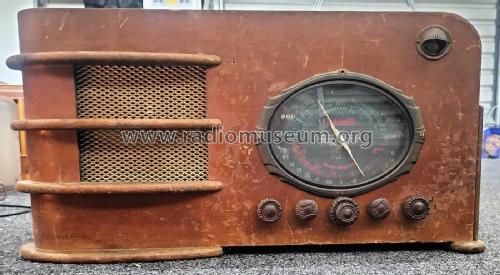

Courtenay 36 AC version
7-Valve (including magic eye) dual wave superhet with RF stage mantel receiver.
Also available as Model 36 AC-DC version and vibrator-powered version Model 68V. This chassis was also used under the Columbus brand.
Manufactured for Turnbull and Jones Ltd by Radio Corporation of New Zealand Ltd.
- Mentioned in
- More Golden Age of Radio (Page 120)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
