- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Courtenay (Brand); Various manufacturers
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339744

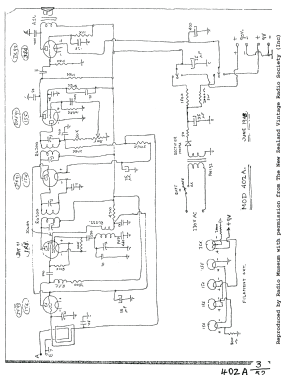

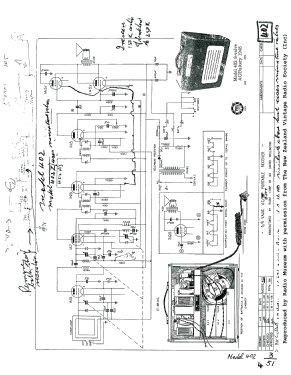

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 230 or 90 & 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 402Z - Courtenay Brand; Various
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 323 x 300 x 160 mm / 12.7 x 11.8 x 6.3 inch
- Notes
-
5-valve plus selenium rectifier superhet with RF stage broadcast (MW) portable receiver.
Miniature valve version of Model 402 of 1948.
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
- Other Models
-
Here you find 67 models, 52 with images and 60 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Courtenay (Brand); Various manufacturers
