- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Courtenay (Brand); Various manufacturers
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 340315

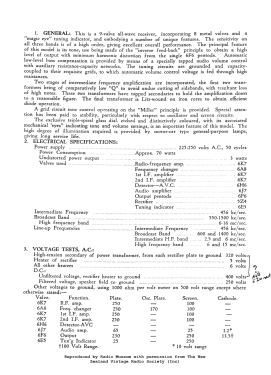

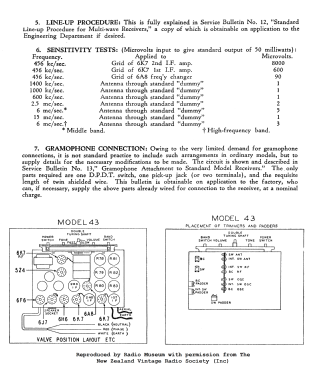

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 43 - Courtenay Brand; Various
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-
9-Valve superhet with RF stage 3 band tombstone receiver.
Phantom Ace spiral dial tuning giving a 24 inch long tuning dial (see attached advert). However, some sets were fitted with a "standard" dial, perhaps due to production or reliability issues.
Manufactured for Turnbull & Jones Ltd by Radio Corporation of NZ Ltd.
- Mentioned in
- -- Original prospect or advert (Nelson Evening Mail 12 June 1937 Page 10)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
