- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Courtenay (Brand); Various manufacturers
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 338772

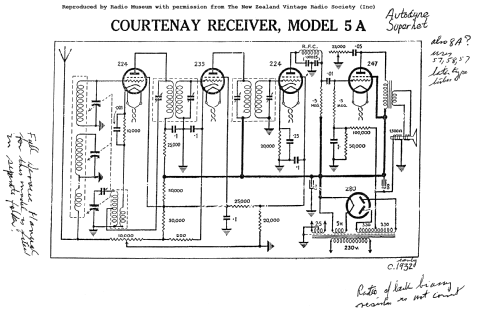

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 5A - Courtenay Brand; Various
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Notes
-
5-Valve superhet with RF stage broadcast (MW) radio.
This radio used an autodyne (self-oscillating) frequency changer.
Similar chassis to Model 5B except for change of 2 valve types.
- Price in first year of sale
- 18.00 NZ £
- Mentioned in
- -- Original prospect or advert (Press 8 November 1932 Page 16)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
