• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Courtenay (Brand); Various manufacturers

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 352121

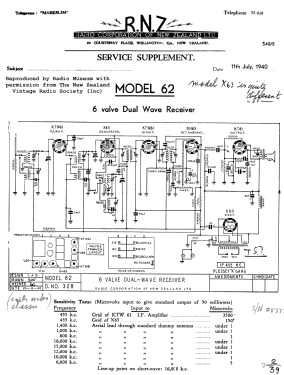

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• KTW61 X65 KTW61 DH63 KT61 U50

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 62 [Console] - Courtenay Brand; Various

• Shape
• Console with any shape - in general

• Notes

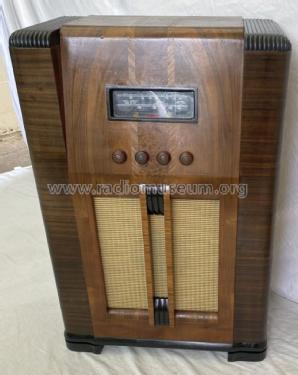

• 6 valve dual wave superhet with RF stage console model receiver.

  See also Courtenay Model 62 and Columbus Model 62 mantel versions.

  Manufactured by Radio Corporation Of New Zealand Ltd for Turnbull & Jones Ltd.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
